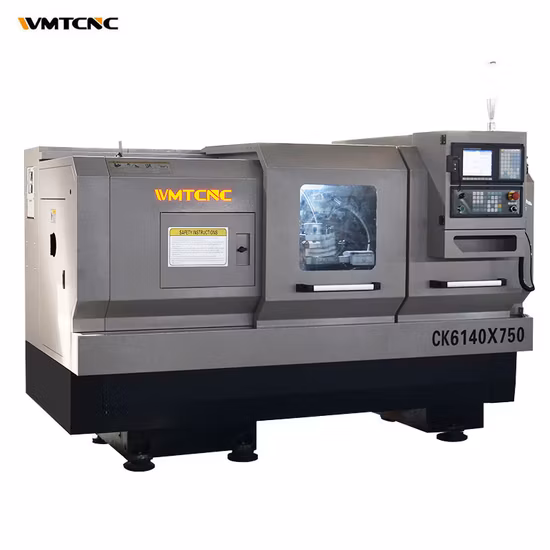

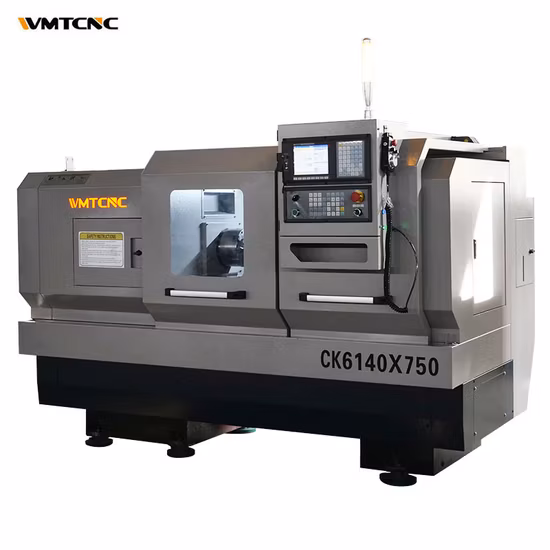

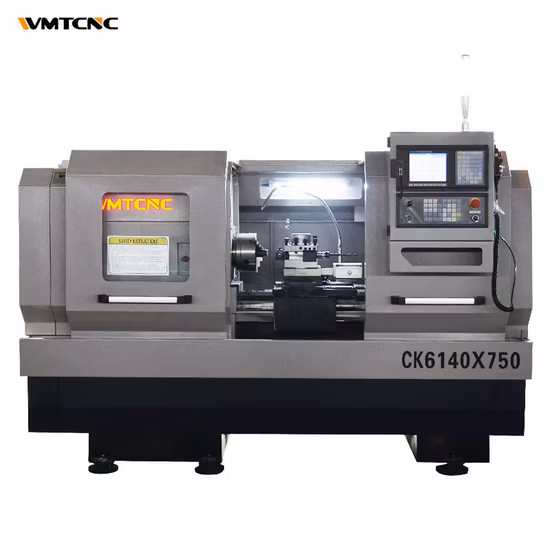

WMTCNC CK6140/750mm high speed cnc turning metal machine precision lathe machine

Basic Info

Model NO.	CK6140
Numerical Control	CNC/MNC
Processing Precision	0.02mm
Performance Classification	Mid-Range CNC Machine Tools
Certification	CE, ISO 9001
Condition	New
Machine type	CNC lathe machine
Max length of work piece	750mm
Spindle bore	60mm
Max. swing over bed	400mm
Colour	Customer appoint
Taper of spindle bore	MT6
Transport Package	Poly-Wood Case
Specification	CE, SGS
Trademark	wmtcnc
Origin	Chizhou, Anhui
HS Code	845899000
Production Capacity	30 Sets Monthly

Product Description

Main Features:
1. Full Cover;2. Safe and easy operation;3. Hardened bedway;4. Electric turret and gang-tools turret for chosing;5. Auto lubrication cnc machine.

Specification	CK6140×750/1000/1500mm
Max. swing over bed	Φ400mm
Max. swing over carriage	Φ240mm
Max length of work piece	750/1000/1500mm
Rail width	330mm
Range of spindle speed	150-2000rpm or 60-600/280-2000rpm with 2 steps
Stations of tool post	4/6/8 position or gang type tool holder
Spindle bore	Φ60mm
Taper of spindle bore	MT6
X-rapid speed	6m/min
Z-rapid speed	8m/min
Width of guide way	330mm
X-axis travel	250mm
Z-axis travel	1000/1500mm
Max size of tool post	25×25mm
Taper of tail stock	MT4
Max range of tail stock quill	120mm
Power of main motor	5.5kw
Packing size(LxWxH)	2420/2740/3240×1620×2100mm
Net weight	1700kg/2100kgs

Detailed ImagesCompany Profile

Professional Service

FAQ

Q1: How is the warranty?A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What's the MOQ?A4: One set only.Q5: How about your quality?A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6: Do you have professional engineers?A6: Yes, we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?A7: Yes, we can design and manufacture according to your specific requirements.
